Fiber Optic OTDR has 200km test distance, supports IOLM function, internal VFL and laser source, power meter as an option, has screenshot function, multi-language display and input.
The Optical Time Domain Reflectometer is a next-generation intelligent meter for fiber communications system detection. With the widespread use of optical network construction in downtowns and rural areas, optical network measurement has grown short and dispersed; the 5000 series is specifically suited for this application. It is cost-effective and performs admirably.
The Fiber Optic OTDR is made with patience and care, adhering to national standards to combine extensive experience and cutting-edge technology, and is subjected to electronic, rigorous mechanical, and optical testing and quality assurance; on the other hand, the new design makes the ODTR more intelligent, compact, and multi-purpose.
The Fiber OTDR can be your best assistant when it comes to detecting link layer in optical network development and installation, as well as efficient maintenance and troubleshooting.

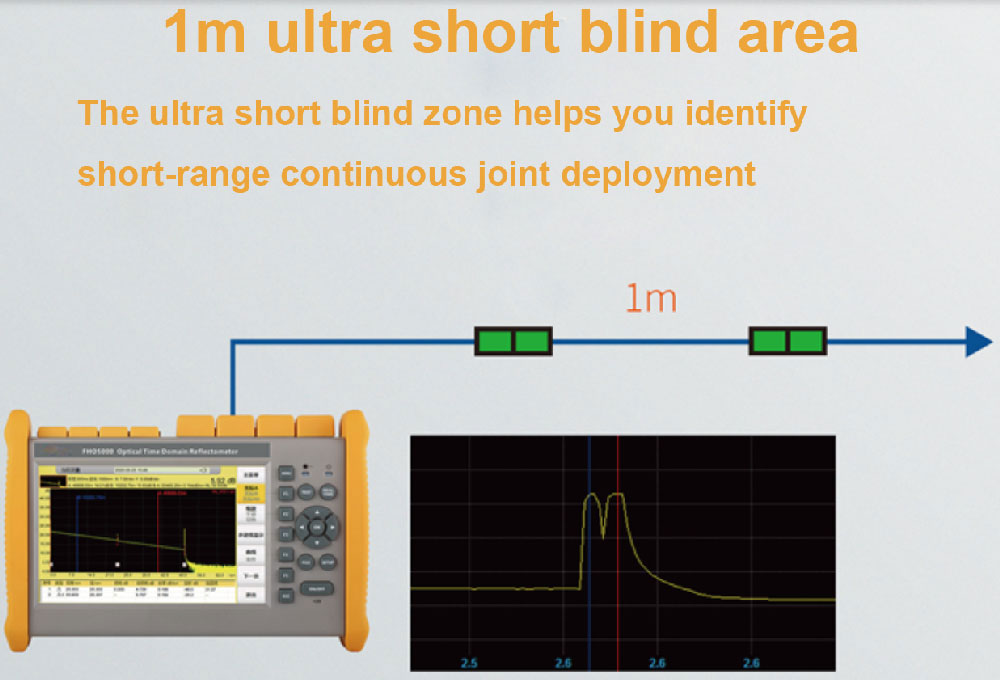

|1||Menu Selection Button||7||Power Switch||13||OTDR1 Port|
|2||Navigation Button||8||Charging Port||14||OTDR2 Port|
|3||AVG Test Button||9||USB (A type)Port||15||PM Port (Optional)|
|4||RT test Button||10||RJ45 Port||16||Battery Compartment|
|5||Test setup Button||11||USB (B type) Port||17||Supporting Plate|
|6||File Management Button||12||VFL port||18||Crash Pad|
|19||Safety Belt Buckle|
|Display||7 inch TFT-LCD（touch screen function is optional）|
|Battery||7.4V/4.4Ah lithium battery (with air traffic certification), Continuously work 6 hours, Charging time 4 hours|
|Data Storage||40000 groups of curve|
|Interface||1×RJ45 port, 3×USB port（USB×2, Mini-USB×1）|
|Dimension||253×168×73.5mm / 1.5kg (battery included)|
|Standard Accessories||Main unit, 12V power adapter, Lithium battery, FC adapter, USB cord, User guide, CD disk, carrying case|
|Optional Accessories||Adapter: SC/ST/LC adapter, Bare fiber adapter Parts: Touchscreen, waterproof protection (IPX5)|
|Pulse width||3ns, 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs, 5μs, 10μs, 20μs|
|Testing distance||Dead zone test, 500m, 2km, 5km, 10km, 20km, 40km, 80km, 120km, 160km, 240km|
|Sampling resolution||Minimum 0.25m|
|Sampling point||Maximum 128,000 points|
|scale indication||X axis: 4m~70m/div, Y axis: 0.09dB/div|
|Distance accuracy||±(1m+measuring distance×3×10-5+sampling resolution )|
|Refractivity Setting||1.4000~1.7000, 0.0001 step|
VFL Module (Visual Fault Locator, as standard function):
OPM Module (Optical Power Meter, as optional function):
|Modulation identification||270/1k/2k Hz,Pi≥-40dBm|
OLS Module (Optical Laser Source, as optional function):
|View of Field||0.40×0.31mm|
|Sensor||1/3 inch 2 million of pixel|
SC-PC-F (For SC/PC connector)
FC-PC-F (For FC/PC connector)
LC-PC-F (For LC/PC connector)
2.5mm-Male (For 2.5mm adapter)
Question: Does Baudcom OTDR 5000 support IOLM function?
Answer: Yes, Baudcom OTDR 5000 can support IOLM, which will be easy to operate test the fiber cable.
Question: How far can Baudcom OTDR 5000 test?
Answer: Theoretical distance is 200KM, and the actual test is 150KM.
|OTDR 5000 Series||OTDR with VFL, with touch screen|
